Testing an AC fan motor means confirming the motor is getting power, checking its windings for shorts or open circuits with a multimeter, and testing the run capacitor that helps the motor start. Because the outdoor condenser runs on high voltage and the capacitor holds a charge, these tests belong to a trained technician, not a homeowner.
The fan motor is an integral component of your air conditioning system, and it works hard under unforgiving conditions for years. Homeowners can still spot the warning signs and handle a few safe checks before calling for help. As Greenwood’s air conditioning repair experts, the team at Complete Comfort Heating, A/C & Plumbing Repair explains how a professional fan motor test works, what causes failure, and how to tell when it’s time to call.
Key Takeaways
- The condenser fan motor pulls air across the outdoor coil so the air conditioner can release the heat removed from your home.
- A condenser fan that won’t start, spins slowly, or rattles usually points to a failing motor, a weak capacitor, or a power problem.
- Technicians test an AC fan motor by checking voltage, measuring winding resistance, and testing the capacitor against its rated value.
- A capacitor reading outside the tolerance printed on its label means the capacitor, not the motor, needs replacement.
- Homeowners should limit their checks to the thermostat, the breaker, and the air filter because condenser circuits carry dangerous voltage.
What Does an AC Fan Motor Do?

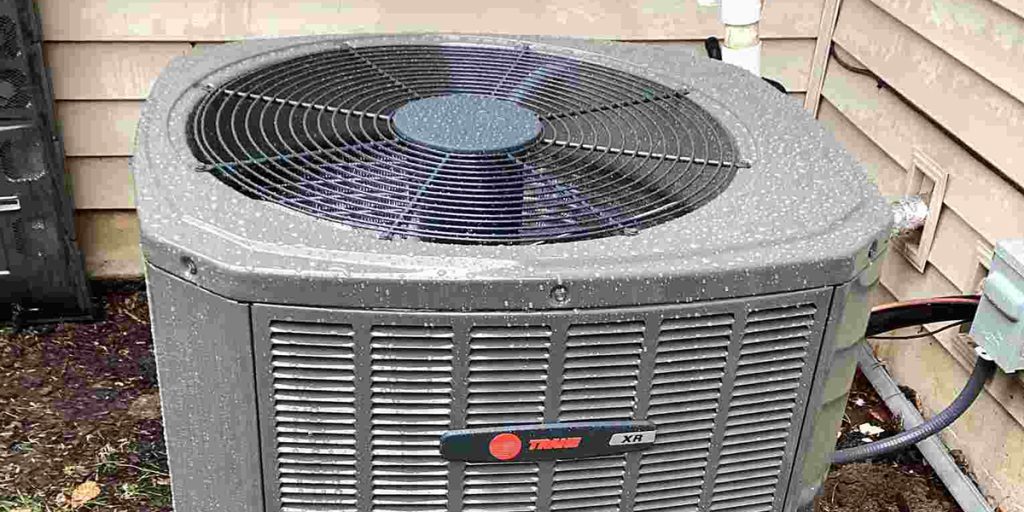

The AC fan motor is the electric motor that spins the large fan on top of your outdoor condenser unit. That fan pulls outdoor air across the condenser coil, which lets the refrigerant release the heat it carried out of your home.
When the fan motor stops, heat has nowhere to go. Pressures inside the system climb, the compressor runs hot, and your home stops cooling even though the outdoor unit may still be humming. Your system also has a second fan, the indoor blower, which moves air through your ducts. This guide focuses on the outdoor condenser fan motor, since it faces the harshest conditions.
The Main Causes of an AC Fan Motor Failure
AC fan motors usually fail from electrical problems, worn bearings, overheating, or dirt buildup. While several things can go wrong with a condenser fan motor, these are the most common causes:
- Electrical issues: Voltage problems, a failing capacitor, or a bad contactor can make the motor overheat and burn out, or keep it from turning on at all.
- Mechanical wear and tear: Years of operation wear out the motor’s bearings, which makes the shaft harder to turn and forces the motor to work harder.
- Overheating: Excess heat can break down the insulation on the motor’s internal wires, resulting in a short circuit that stops the motor.
- Dirt and debris: Grass clippings, leaves, and cottonwood fluff collect on the fan blades and coil, which can throw the blades off balance and strain the motor.
- Wiring problems: Loose, corroded, or improperly connected wires can cause the motor to overheat, damage its bearings, and eventually stop working.
Rather than reaching into the unit to clean the blades yourself, have them cleaned during regular AC maintenance, when a technician can shut off power safely and inspect the motor at the same time.
If you feel your fan motor has problems, don’t hesitate to contact a specialist to check it out and recommend the best solution. Depending on what’s wrong, the technician may repair the electrical issue, replace the capacitor, or replace the motor. With regular maintenance and inspections, fan motor issues can be caught and fixed before they cause more severe damage.
Signs and Symptoms of a Faulty AC Fan Motor
The most common signs of a faulty AC fan motor are a fan that won’t start, won’t stop, spins slowly, or makes a rattling noise. You’ll find the fan in the condenser unit, the part of the air conditioning system that sits outside your house. With the air conditioner running, you can watch and listen to the fan from a few feet away without opening anything.
The common signs that your fan motor is faulty include:
- The fan doesn’t start even though the AC is on and the compressor is humming
- The fan doesn’t stop even with the AC turned off at the thermostat
- The fan turns on, but the blades rotate slowly or seem to struggle
- A rattling, grinding, or squealing noise comes from the condenser unit when the fan runs
- The fan starts and stops on its own while the compressor keeps running
These signs can also point to other problems, such as a failing capacitor, a bad contactor, or a thermostat issue, so it can be hard to tell whether the fan motor is the culprit just by looking. Across our service area, from AC repair in Indianapolis to homes in Greenwood and Avon, a professional test is how we separate a bad motor from a cheaper fix.
How a Technician Tests a Fan Motor With a Continuity Test
A continuity test checks whether electricity can flow through the motor’s windings the way it should, and technicians run it as part of a three-part diagnosis. Before testing, the technician sets the thermostat to cool so the system calls for the fan, then confirms what the fan does when it should be running.
Step 1: Check the Power
The first step is confirming the fan motor is getting power at all. A homeowner can safely check the circuit breaker for the air conditioner and reset it once if it has tripped. If it trips again, leave it off and call for service, because a repeat trip points to an electrical fault.
From there, the technician measures voltage at the disconnect, the contactor, and the motor leads while the system is calling for cooling. The technician also checks the low-voltage control circuit, including the fuse on the control board or transformer, since a blown fuse there can keep the whole outdoor unit from starting.
Step 2: Inspect the Windings
With the power off and the capacitor safely discharged, the technician checks the motor’s windings by measuring resistance in ohms between the motor’s leads. The windings are the coils of copper wire inside the motor that create the magnetic field that turns the shaft.
A reading of zero, or close to it, indicates a shorted winding, which often trips the breaker. An infinite reading, shown as OL on most meters, signifies an open winding, meaning the circuit is broken inside the motor. Wire colors and lead arrangements vary by manufacturer, so technicians compare their readings to the wiring diagram for that specific motor. Either a short or an open winding means the motor needs replacement.
Step 3: Examine the Capacitor
A fan motor that won’t run isn’t always a bad motor. If the power supply and the windings check out, the capacitor is the next suspect. The run capacitor stores and releases energy to give the motor the torque it needs to start and keep running.
A failing capacitor can’t deliver enough power, so the fan may hum without turning, start slowly, or stop after a few minutes. After discharging the capacitor, the technician measures its capacitance in microfarads with a meter and compares the reading to the rating and tolerance printed on the capacitor’s label. A reading outside that range means the capacitor needs replacement, and it’s often the cheaper fix that gets the fan running again.
What a Multimeter Test Tells a Technician
A multimeter test gives a technician a clear yes or no on the motor’s internal condition. During the resistance test, the readings fall into three categories:
- Infinite reading: The circuit is open, so the motor winding is broken and the motor is faulty.
- Zero reading: The winding is shorted, so the motor is faulty and may be tripping the breaker.
- Reading within the expected range: The windings are intact, so the technician moves on to the capacitor, bearings, and controls.
Resistance alone doesn’t tell the whole story. A motor can pass a continuity test and still draw too much current because of worn bearings or a weak capacitor. That’s why ENERGY STAR’s maintenance checklist calls for technicians to tighten all electrical connections and measure voltage and current on motors. Comparing the motor’s amp draw to the rating on its nameplate shows whether it’s working too hard.
Safe Checks Homeowners Can Make Before Calling
Homeowners can safely rule out a few simple causes before scheduling a fan motor test. Anything that involves removing panels, touching wires, or reaching into the unit should be left to a technician.
These checks are safe to make on your own:
- Confirm the thermostat is set to cool and the temperature setting is below the current room temperature.
- Check the breaker panel for a tripped air conditioner breaker, and reset it only once.
- Replace the indoor air filter if it looks dirty, since poor airflow strains the whole system.
- With the system off, clear leaves and debris from around the outside of the condenser.
- Watch and listen to the outdoor fan from a few feet away while the system runs.
Pushing the fan blades with a stick to get them spinning is a common internet tip, but it puts your hands and tools near a high-voltage unit with a blade that can start without warning. A fan that only runs after a push almost always has a failing capacitor, which a technician can replace safely. If the fan has stopped on a hot day and the house is heating up, call for emergency AC repair so the compressor doesn’t overheat.
Frequently Asked Questions About AC Fan Motors
How Long Do AC Fan Motors Last?
An AC condenser fan motor can last many years, but heat, moisture, dirt on the blades, and a weak capacitor all shorten its life. Motors that run in direct sun and go years without maintenance tend to wear out bearings sooner than motors on regularly serviced systems.
Can an Air Conditioner Run Without the Condenser Fan?
An air conditioner should not run without the condenser fan. Without the fan, the outdoor coil can’t release heat, so pressures rise quickly and the compressor overheats. Most compressors will trip their internal overload, but repeated overheating shortens the compressor’s life.
What Does a Bad AC Capacitor Sound Like?
A bad AC capacitor often causes a humming or buzzing sound from the outdoor unit while the fan sits still or turns very slowly. You may also hear repeated clicking as the system tries to start. A bulging or leaking capacitor is another sign, but only a technician should open the panel to look.
Is It Better to Repair or Replace an AC Fan Motor?
A failed AC fan motor is usually replaced rather than repaired, since the motor is a sealed component. If the problem turns out to be the capacitor or a loose connection, that repair is quicker and less expensive. On an older system with other problems, the fan motor failure may be a good time to talk about replacement options.
Why Won’t My AC Fan Turn Off?
An AC fan that won’t turn off is most often set to on instead of auto at the thermostat. If the setting is correct, a stuck contactor in the outdoor unit or a faulty relay in the indoor unit can keep the fan running, and both need a technician’s diagnosis.
Getting Your AC Fan Motor Tested in Indianapolis and Greenwood
Testing an AC fan motor takes a voltage check, a winding resistance test, and a capacitor test, and those steps are safest in the hands of a trained technician. Complete Comfort Heating, A/C & Plumbing Repair has served Indianapolis, Greenwood, and the surrounding areas since 2003, and our technicians diagnose and replace fan motors and capacitors on all brands of air conditioners. If your outdoor fan won’t start or sounds rough, schedule your AC service today.
